Truly state of the art DSP amplifiers, each offering 8 channels of digital amplification and total power of 3,200, and 6,000 watts respectively. They are currently the most efficient amplifiers in their class in the world, producing less heat than competitive products with similar output power. Featuring a 96Khz, 24 bit signal path with 40 bit internal processing. Can be used in conjunction with any of our loudspeakers using pre-programed digital processing specific to each model. Can also be used in any application anywhere extreme power and fidelity are required simultaneously. Outputs can be configured to low impedance (I.e. 8 ohm, 4 ohm, 2 ohm) or in 25v, 70v, and 100v systems. Each output can be configured independently. Analog or digital input (AES3 or optional DanteTM). Optional rear rack-mount kit available. Amplifier is configured and controlled over Ethernet using our suite called System Engineer which is a free software suite. The AT series amplifiers set the global standard in high-power, high-fidelity sound.

Description:

Number of output channels:

Total power output, all channels driven:

Audio inputs:

Digital Signal Processing:

Control, monitoring and system:

Status alarms:

​Power-save modes:



​System standby and wakeup:

Eight Channel Class D Amplifier with built in DSP

Eight

6,000 and 3,200 Watts RMS

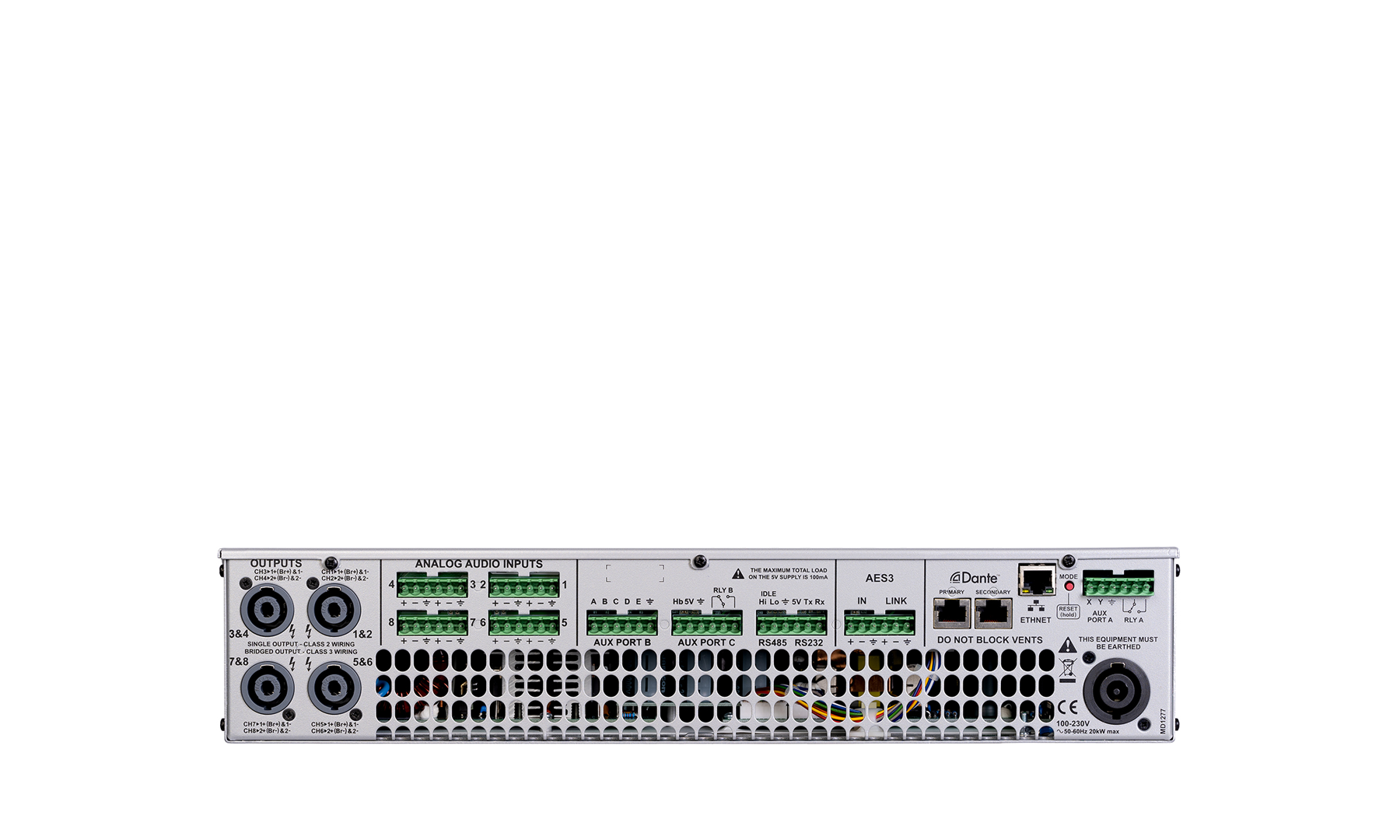

8x Analogue, 2x AES3 and 8x Dante™ / AES67 (factory fitted option)

High performance 96kHz DSP on all inputs and outputs

Ethernet network, RS232 & RS485

Volt-free relay and contact closure ports. Heartbeat system health output

Standby after user defined time with fast wake up on audio

Deep ECO sleep after user defined time with take up on command

Network command, audio detection & contact closure



See AT 88 Series Amplifier Datasheet for complete specifications

Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and development routine.
