AT 1K SA

Advanced Subwoofer Amplifier

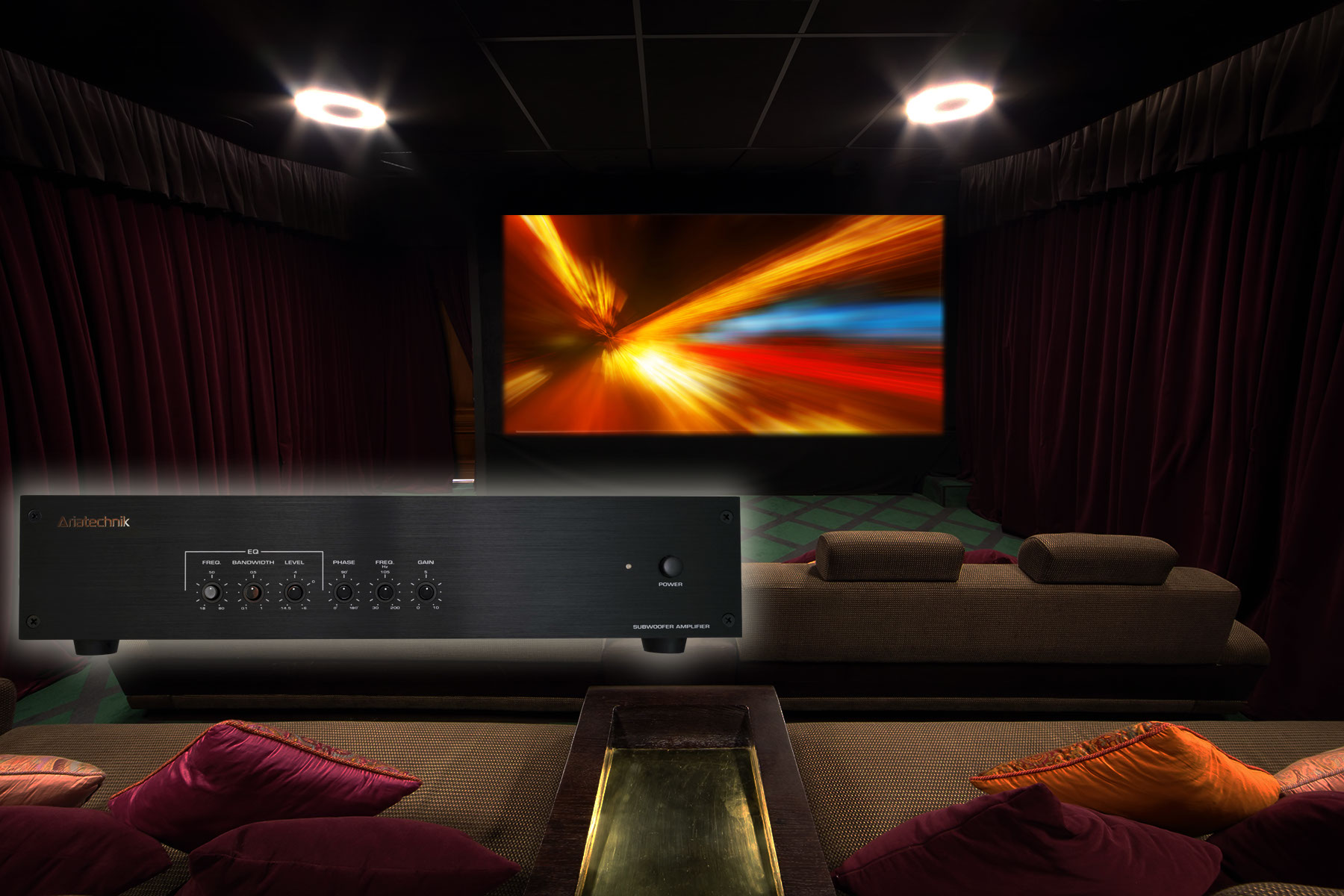

Ariatechnik’s AT 1K SA mono subwoofer amplifier provides nearly a kilowatt of clean, solid power to your home theater or music playback system. The amplifiers convenient freestanding or rack-mountable configurations make it an ideal partner for high-performance subwoofer speaker systems.



This unique monaural audio device delivers the raw power of a
pro-sound amp, but with the features and flexibility of a dedicated subwoofer amplifier. It can be configured for stacking with other audio components, and includes removable ears for mounting in standard audio racks (2RU). The AT 1K SA’s patented tracking down-converter power supply ensures headroom for instantaneous power needs and the amp stays cool, thanks to its high-efficiency design.

A Class-AB amplifier configuration provides the AT 1K SA with clean and controlled output. From an application standpoint, the AT 1K SA's low frequency parametric EQ enables you to boost or cut to custom-tailor the sound to suit the listening environment. Sophisticated soft clip circuitry provides cleaner transient peaks while protecting the subwoofer driver from over-excursion. The amp's switchable subsonic filter removes subsonic information from the signal, which tightens the low-end response of some subwoofer applications. On-board bass boost filters enhance LF performance while leaving the parametric EQ function available to address room modes, like cutting an excessively loud room resonance. The high-pass outputs provide a user the option to feed the signal back into their other audio components or a distributed audio system.

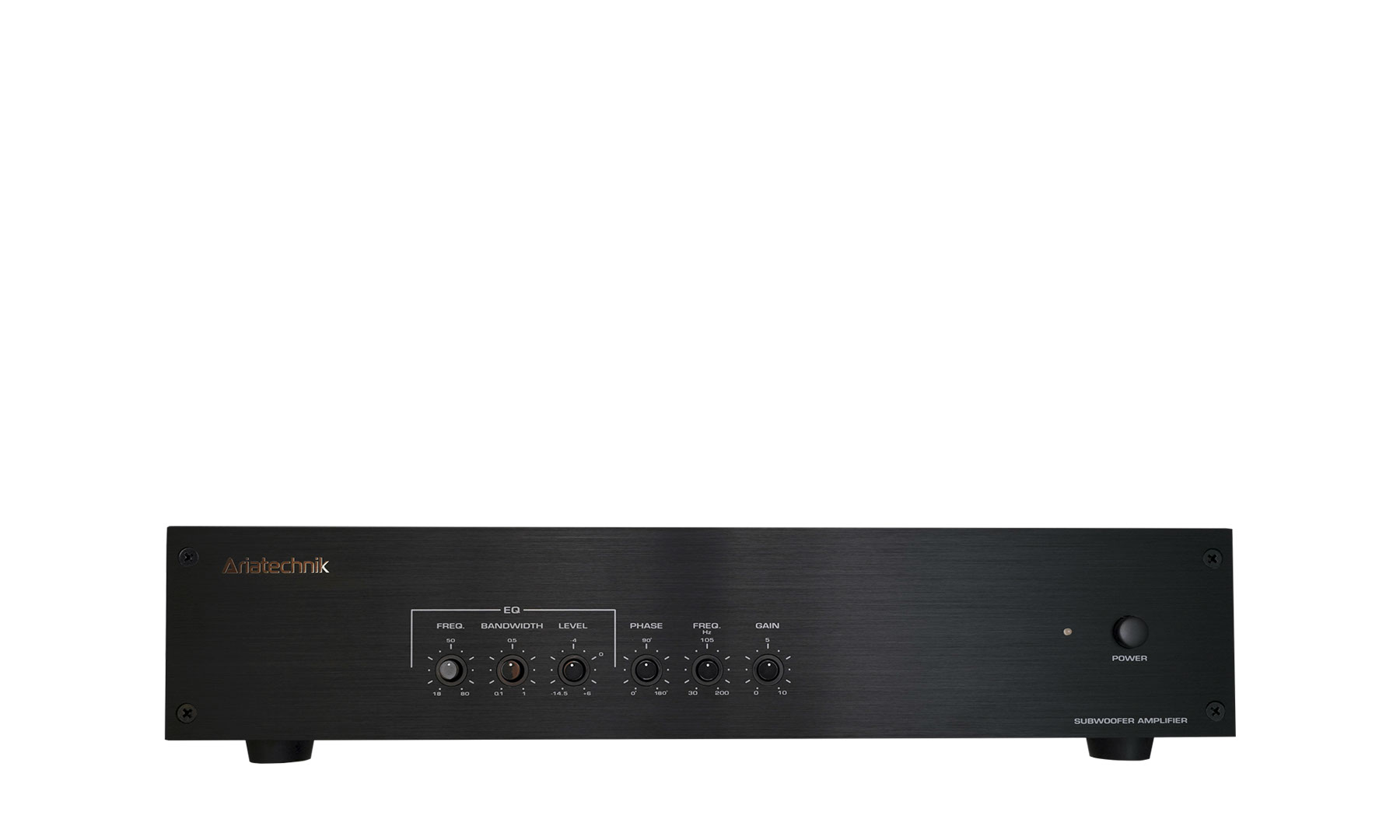

Manual, automatic on/off or triggered 12V input modes allow easy integration into automated systems. The stealthy pop-out knobs on the front panel make adjustments easy, while minimizing the risk of accidental disturbance. The AT 1K SA’s subdued brushed black aluminum faceplate allows the amp to blend cosmetically with any type of audio gear. Accommodates RCA line-level inputs, includes insulated binding posts for the speaker outputs, and accepts a 12V trigger via a 3.5 mm mini-jack.

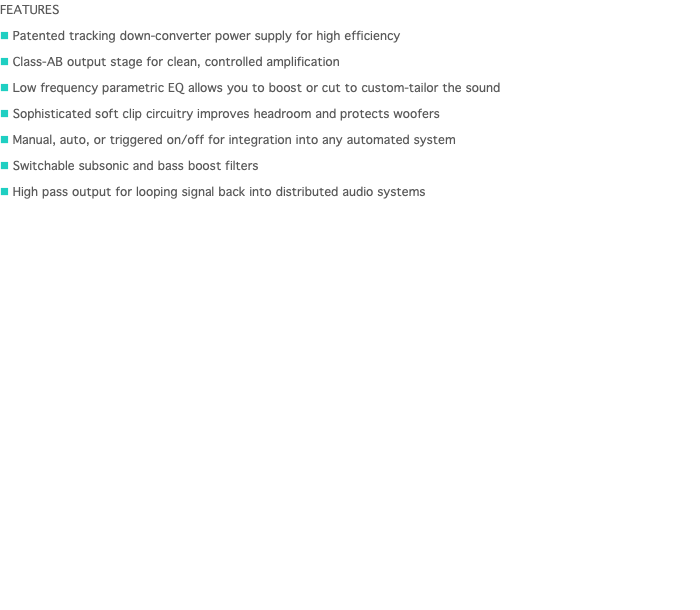

FEATURES n Patented tracking down-converter power supply for high efficiency n Class-AB output stage for clean, controlled amplification n Low frequency parametric EQ allows you to boost or cut to custom-tailor the sound n Sophisticated soft clip circuitry improves headroom and protects woofers n Manual, auto, or triggered on/off for integration into any automated system n Switchable subsonic and bass boost filters n High pass output for looping signal back into distributed audio systems

TECHNICAL SPECIFICATIONS

Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and development routine.

Rated power output (0.92% THD): 497 watts into 8 ohms, 950 watts into 4 ohmsSignal to noise ratio: 98 dB A-weightedEfficiency: 86%Input impedance: 12K ohmsInput sensitivity: 775 mVSubsonic filter: -3 dB @ 18 Hz, Q=0.8Bass boost: +3 dB @ 25 Hz, Q=1.4High pass output: -3 dB @ 80 Hz, 12 dB/octaveLow pass adjustment: 30-200 HzPhase adjustment: 0°–180°Parametric EQ frequency: 18–80 HzBandwidth: 0.1–1.0 QLevel: -14.5 dB to +6 dBDimensions: 17-1/2" W x 4" H x 13" D (tabletop configuration)Power requirements: 120/230 VAC, 60/50 HzStand-by power rating: 120V 24W; 230V 18.4WWeight: 28 lbs.Power rating based on one-third power duty cycle.

Full specification PDF
