AT SB-C (Sound Bar Compact)

FEATURES n Three 4" (102mm) point source drive units n Very flat frequency and phase response n Ideal for use above or below flat screen televisions n Exceptional transient performance APPLICATIONS n Superior harmonic alignment n Natural, clean and integrated sound n Enhanced intelligibility, sound staging and dynamics n Recommended amplifier power 100 to 200W @ 8Ω

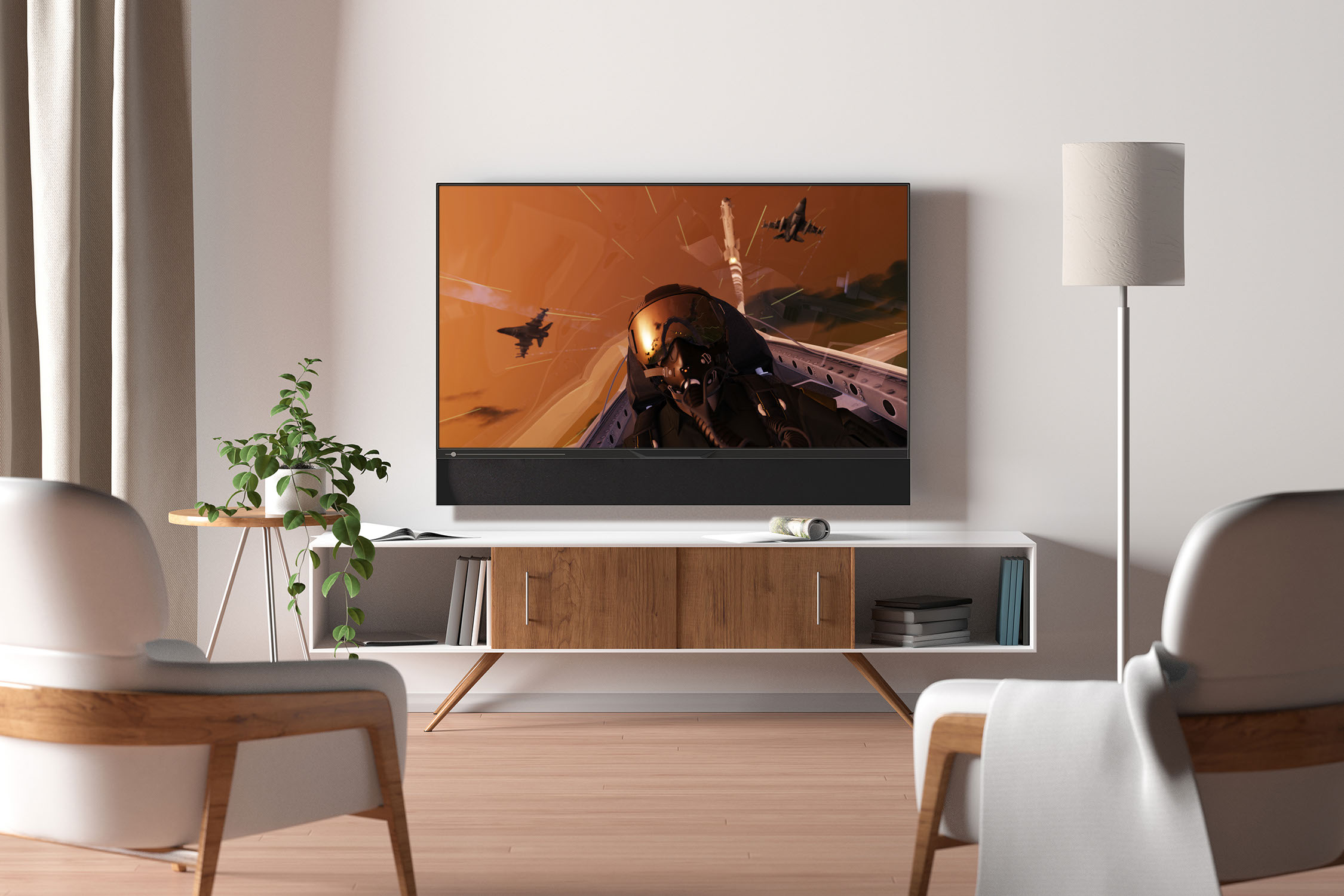

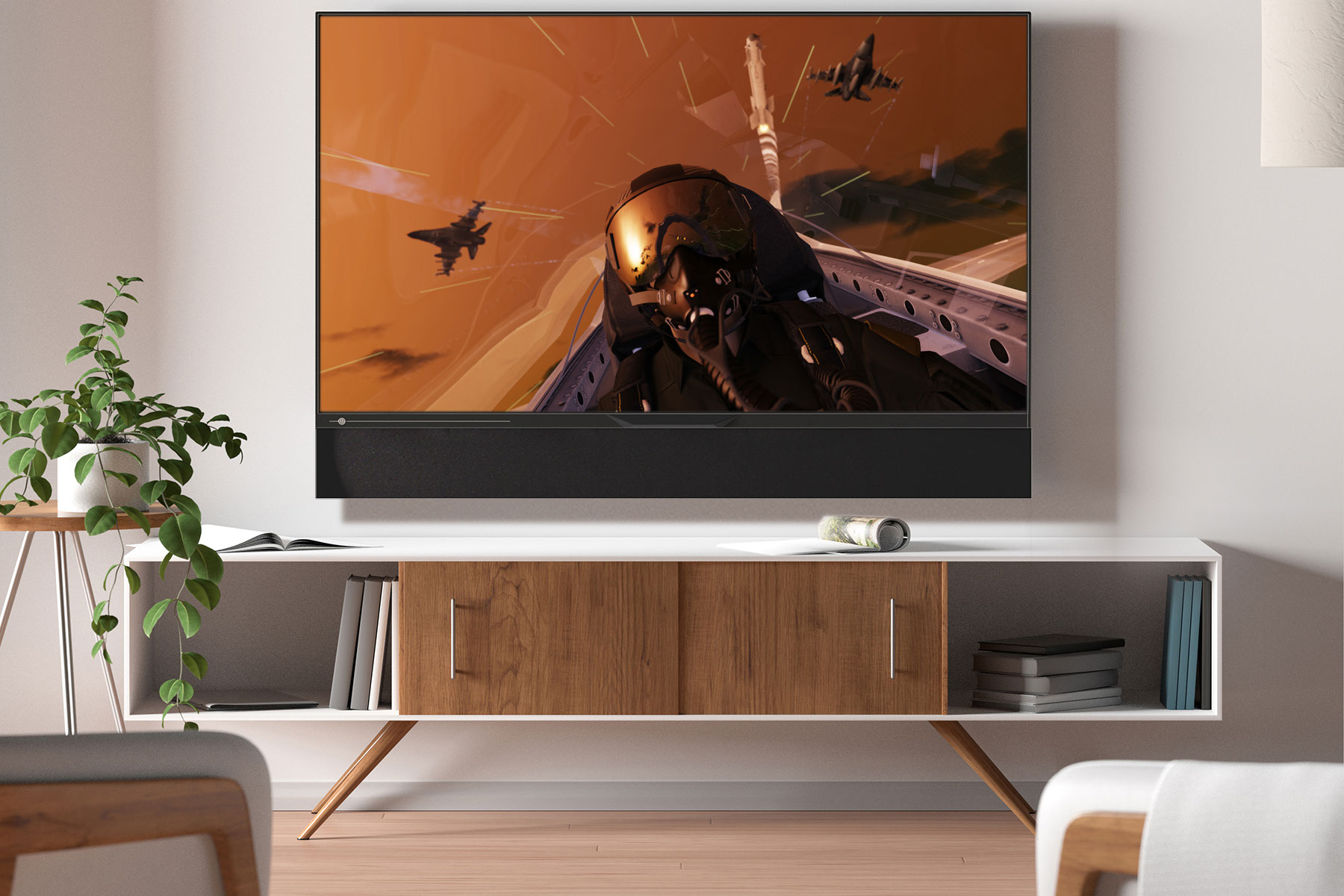

The AT SB-C (compact) soundbar utilizes three of our 4” point source drive units in a very diminutive and lightweight cabinet.

It has amazing sound quality and performs well on both music and movies. The SB-C brings the advantage of a point source driver to a

considerably lower price point than the venerable SB-R (Sound Bar Reference), while still significantly outperforming competitive designs due to the advantages of the point source design. The SB-C is designed to work in conjunction with our AT 12 IR Active Subwoofer or any higher output subwoofer. Deep bass is directed away from the soundbar to limit vibration induced or vibration borne distortion and potential long-term damage to the television.













WAVE SYNERGY™ DRIVER

Characteristic of the Ariatechnik Wave Synergy™ design is that it presents a large 'sweet spot' both vertically and horizontally with an exceptionally even response throughout the listening area, as well as a extraordinary transient response.


The Wave Synergy driver is effectively two drivers properly merged into one where, unlike ordinary drive units, the high frequency unit is positioned on the back of the low frequency driver and in the proper phase alignment with the high frequency driver. As a result they are on the the same axis, so ensuring that sound energy is effectively propagates from the same point and delivered through the center of the low frequency cone as true point source.


Such integration optimizes reproduction quality by providing a constant time delay over the frequency spectrum, exceptional transient performance, wide dispersion and superior harmonic alignment, all of which delivers to the listening position a natural, clean and integrated sound with greatly enhanced intelligibility, sound staging and dynamics.

TECHNICAL SPECIFICATIONS

SYSTEM

Description:













Transducer:



Crossover Type:

Power Handling:





Native Sensitivity:

Frequency Range:

Frequency Range:

Maximum Output:

The Ariatechnik 4” Point Source driver is a full-range coaxial loudspeaker providing high quality sound in a very compact format featuring a 4" curved linear poly cone woofer mated with a 3/4" silk dome tweeter. The poly cone woofer provides a good balance between stiffness, low mass and damping making for a very

natural sounding driver with a smooth frequency response. The silk dome tweeter provides detailed and clear high frequencies with minimal distortion.

Ariatechnik 4" Concentric Driver with

3/4" Silk Dome Tweeter 8 Ohm

Passive network

Average (A.E.S): 40 Watts,

Program: 100 Watts,

peak: 300 Watts

87 dB woofer, tweeter: 89.2 dB

95 Hz - 20 kHz +/- 3 dB

80 Hz - 25 kHz -10 dB

8 Ohms

CONSTRUCTION

Material:



Dimensions: (HxWxD)

Soundbar body 65”:





Soundbar body 75”:





Grill Dimensions:







Weight:

Soundbar 65” SB-C:



Soundbar 75” SB-C:



Note:





Shipping Weight:







MDF Painted texture black





6'× 56.6" x 2.6"

152.4mm x 1666mm x 66mm



6" x 65.6" x 2.6"

152.4mm x1666mm x 66mm



All grills are made to match the width of the television being utilized and are 0.375" or

9.52mm thick.





approx. 19 lbs. (8.61kg) with 65" grill



approx. 22 lbs. (9.97kg) with 75” grill



Weight varies slightly with grill width for

TV matching



TBD

Rugged construction MDF enclosure, internally braced and finished with textured black paint with black grill. Custom finish and size options available.

Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and development routine.
