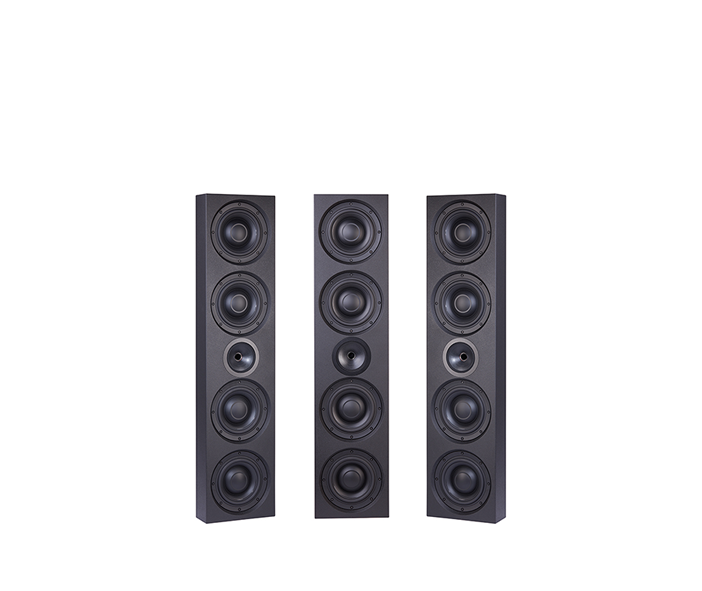

The AT 6.1-4.10 IW is our reference inwall loudspeaker designed to be used in 2X6 or deeper (38mm x 140mm) wall construction.

It is also ideal for use with video walls and can be deployed vertically or horizontally with no significant changes in performance due to

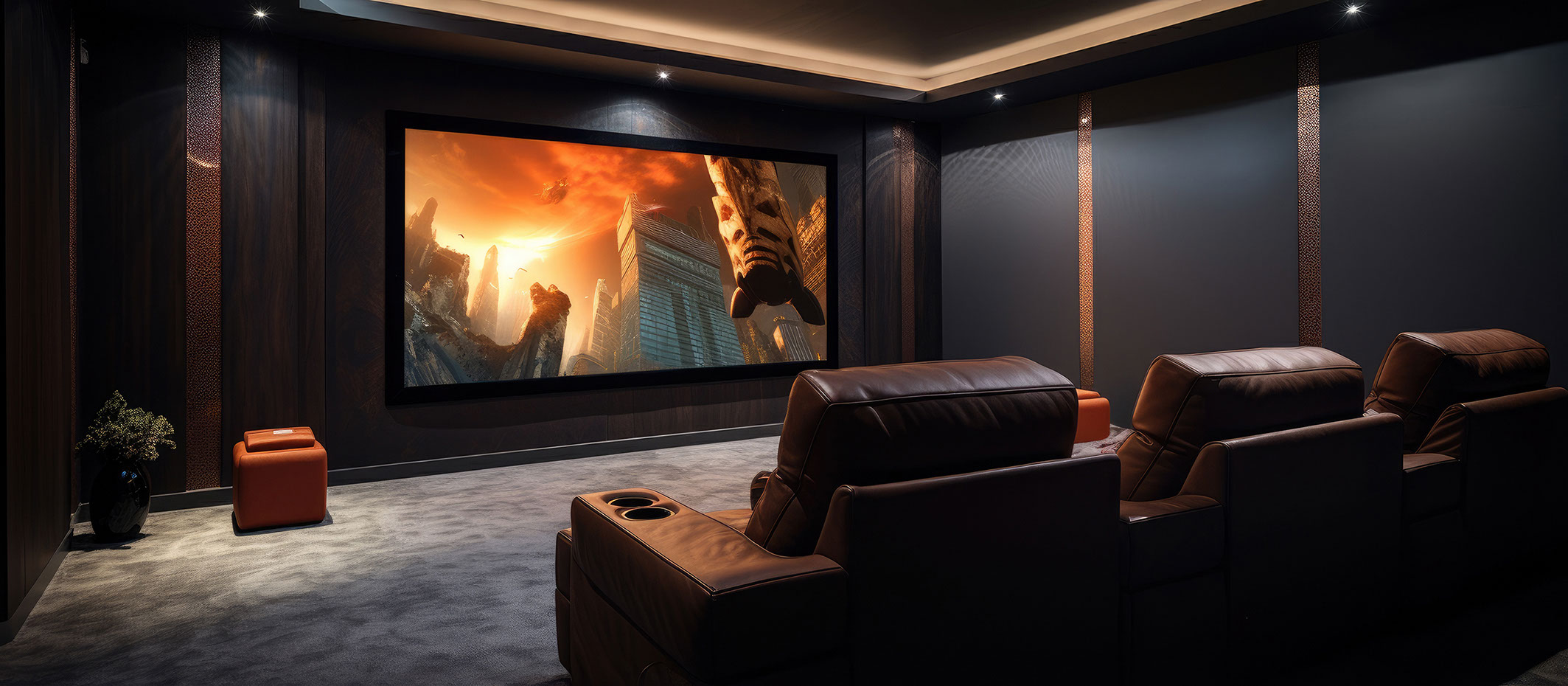

the Wave Synergy Drivers 90-degree conical dispersion. It can be deployed behind screen or using stretch fabric wall covering systems. The AT 6.1-4.10 IW has true theater level output at over 116.d.B. maximum in room, while having an incredibly small footprint for rooms where space is limited or where the install requires preservation of space above all else. The speaker utilizes our 6” Wave Synergy™ drive unit coupled perfectly to 4 long throw 10” subwoofers. The true full bandwidth frequency response covers from 29Hz to 35Khz with massive dynamics and subtle musicality while remaining invisible to the end user.



Wave Synergy™

Characteristic of the Ariatechnik Wave Synergy™ loudspeaker design is that it presents a large 'sweet spot' both vertically and horizontally with an exceptionally even response throughout the listening area, as well as an extraordinary transient response. The Wave Synergy™ driver is effectively two drivers properly merged into one where, unlike ordinary drive units, the high frequency unit is positioned on the back of the low frequency driver and in the proper phase alignment with the high frequency driver. As a result they are on the the same time axis, so ensuring that sound energy effectively propagates from the same point and is delivered through the center of the low frequency cone as true point source.



Such integration optimizes reproduction quality by providing a constant time delay over the frequency spectrum, exceptional transient performance, wide dispersion and superior harmonic alignment, all of which delivers to the listening position a natural, clean and integrated sound with greatly enhanced intelligibility, sound staging and dynamics

SYSTEM

Description:
Transducer:

Crossover Type:

Power Handling:



Native Sensitivity:



Frequency Range:

Maximum Output:

Nominal Impedance:



Wave Synergy™ Point Source In Wall Loudspeaker

6” (152 mm) Wave Synergy™ driver

Hybrid Passive/Active or fully passive (optional)

Mid High 130+25 W Low Frequency

1000 Watts/2500 Watts Peak

Wave Synergy™ driver 93 d.B./110 d.B. 1

Watt Mid/Tweeter, Subwoofer 90 d.B. 1 Watt

29Hz-35 Khz

116 d.B.

8Ohms mid/high 2 ohms LF section



CONSTRUCTION

Overall Dimensions: (WxHxD)

Weight

Shipping Weight:









14" W x 60.75" H x 5.4”D

99 lbs/44.9 KG

Varies with order quantity

Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and development routine.
