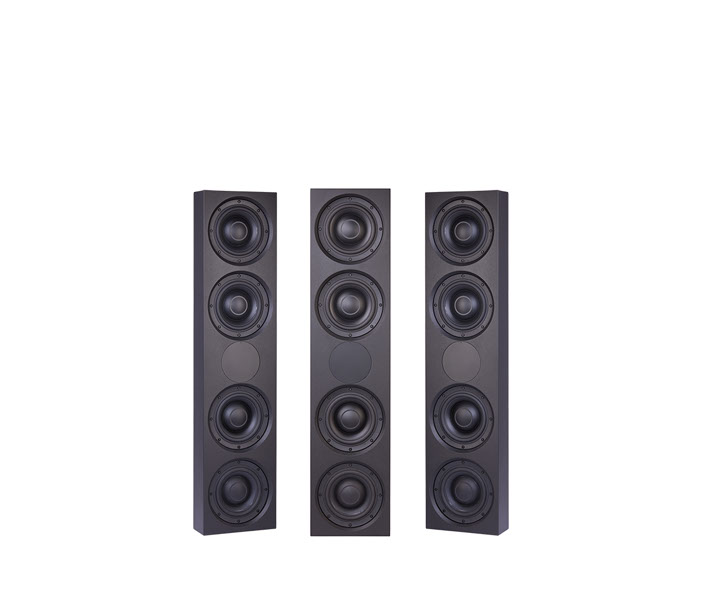

AT 4.10 LFE inwall
High output inwall subwoofer with Wave EM-Pact technology

The AT 4.10 IW is our reference inwall subwoofer designed to be used in 2X6 or deeper (38mm x 140mm)wall construction.

It can be deployed behind screen or using stretch fabric wall covering systems. It is ideal for adding additional bass output to
the AT 6.1-4.10 IW in video wall systems or as and LFE only loudspeaker in inwall only systems.The AT 4.10 LFE has true theater level output at over 116 d.B. maximum in room while having an incredibly small footprint for rooms where space is limited or where the install requires preservation of space above all else. The speaker utilizes 4 long throw 10” subwoofers. The frequency response covers from 29Hz to 120Hz with massive dynamics and subtle musicality while remaining invisible to the end user.

















Wave EM-Pact™

Ariatechnik’s Wave EM-Pact™ is a group of our core technologies and design techniques that increase bass de nition and clarity.
This is accomplished by using very high motor strength woofers in carefully sized cabinets and state of the art digital signal processing techniques that increase linearity, lower group delay (or time errors) and lower audible distortions.


The end result is a level of impact and clarity in music and film
 that is very different and better from that of traditional loudspeaker designs

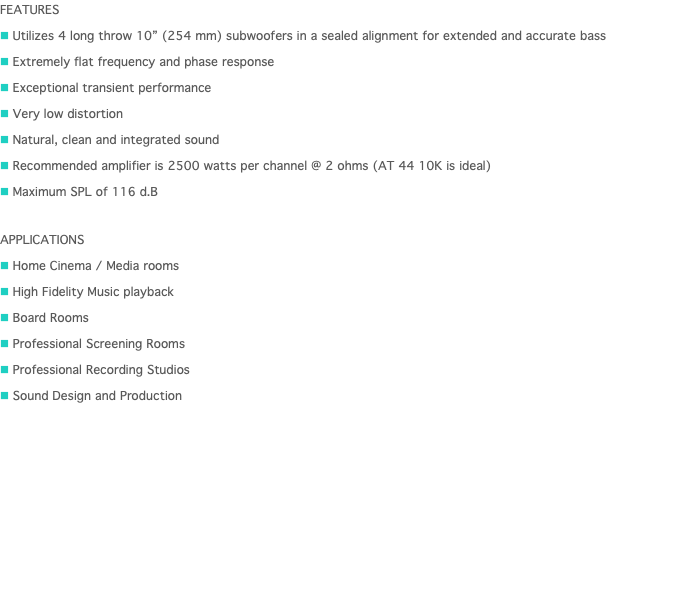

FEATURES n Utilizes 4 long throw 10” (254 mm) subwoofers in a sealed alignment for extended and accurate bass n Extremely flat frequency and phase response n Exceptional transient performance n Very low distortion n Natural, clean and integrated sound n Recommended amplifier is 2500 watts per channel @ 2 ohms (AT 44 10K is ideal) n Maximum SPL of 116 d.B APPLICATIONS n Home Cinema / Media rooms n High Fidelity Music playback n Board Rooms  n Professional Screening Rooms n Professional Recording Studios n Sound Design and Production

TECHNICAL SPECIFICATIONS

SYSTEM

Description:

Transducer:

Crossover Type:

Power Handling:

Native Sensitivity:

Frequency Range:

Maximum Output:

Nominal Impedance:



4 long throw 10” (254 mm) subwoofers in a sealed
alignment for extended and accurate bass
4 10” (254mm) long throw subwoofer drivers

Active in amp

1000 Watts/2500 Watts Peak

90 d.B.

29hz-120Hz -3 d.B.

116 d.B.

2 Ohms



CONSTRUCTION

Overall Dimensions: (WxHxD)



Weight

Shipping Weight:









60.75" x 14" x 5.4"

1543.05 mm x 355.6 mm x 137.16 mm

85 lbs/38.55 KG

Varies with order quantity

Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and development routine.
