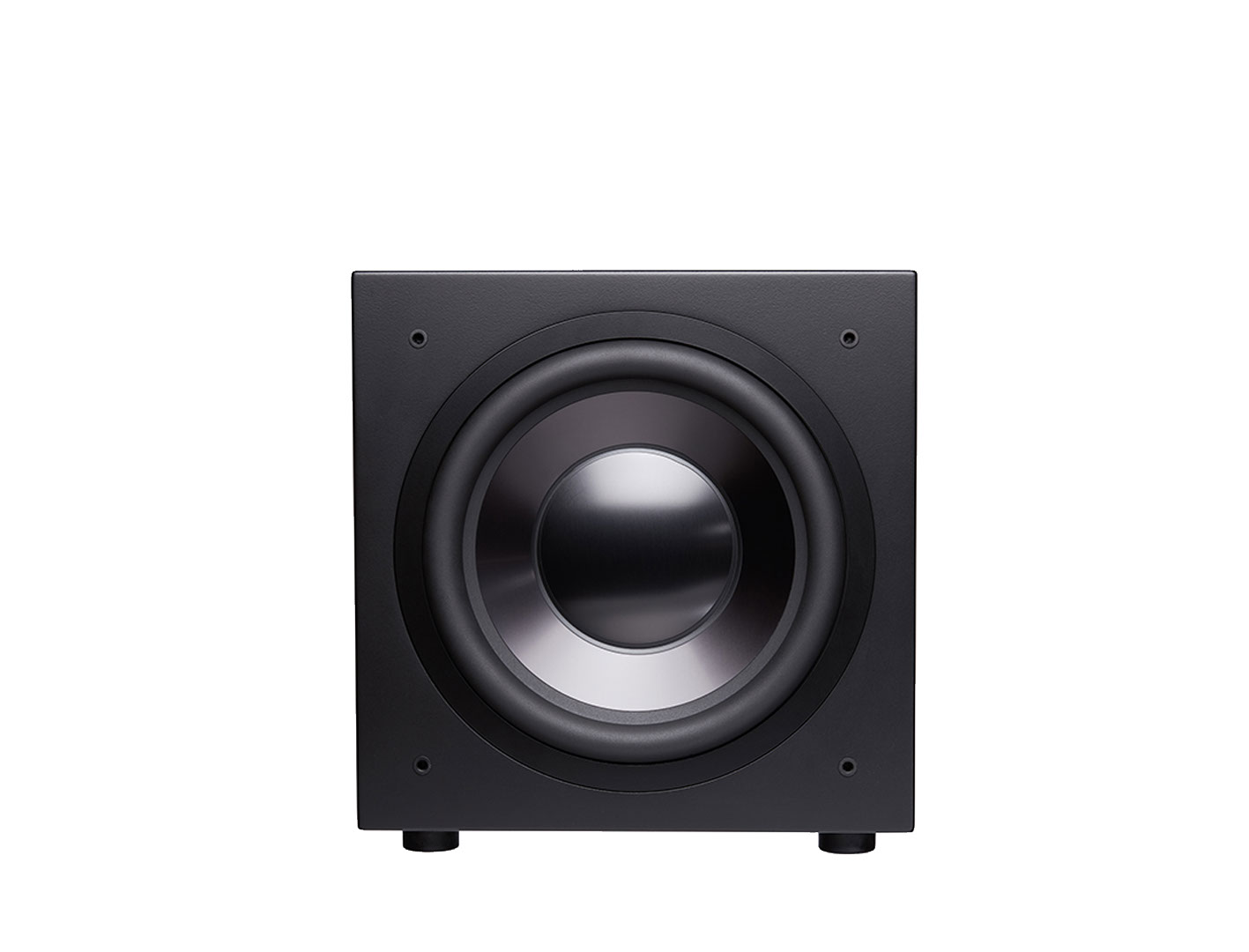

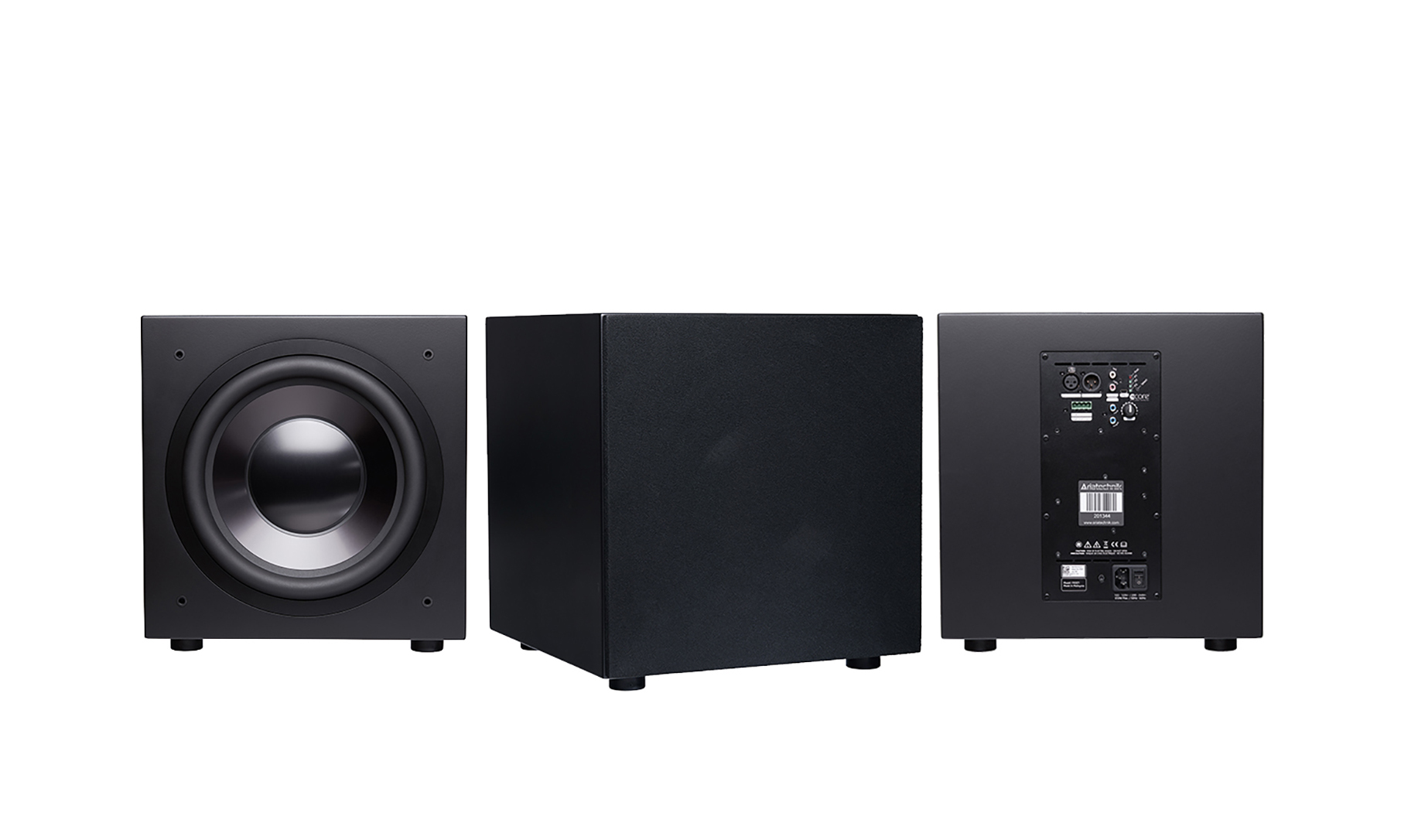

AT 12 IR-A

In room Active Subwoofer

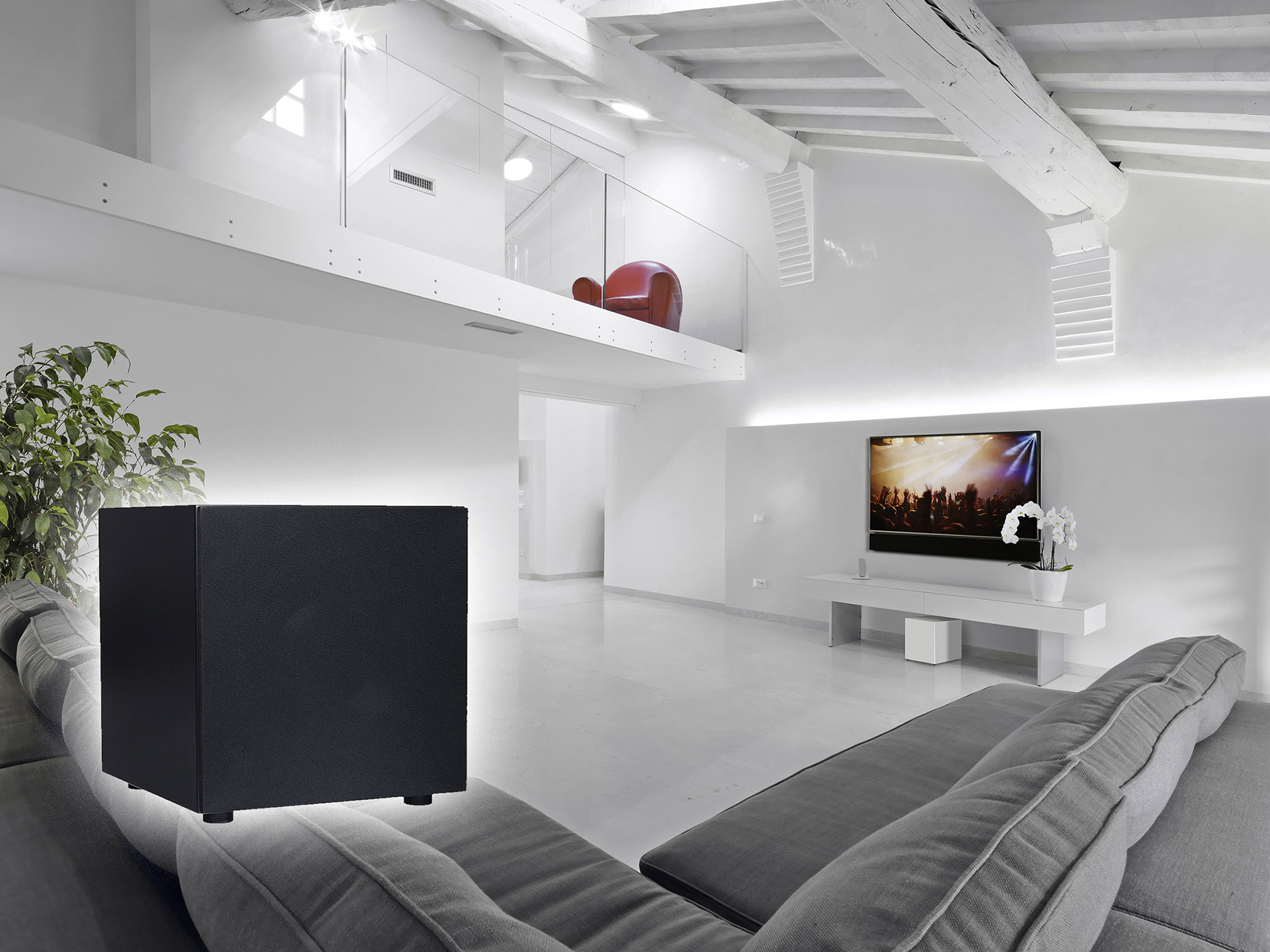

The AT 12 IR-A Subwoofer has been designed around a high impact, aluminum coned 12-inch drive unit to bring audiophile performance to a wide range of installation applications. The AT 12 IR-A is a subwoofer that is intended for use in media rooms, home theaters or anywhere a high output loudspeaker for low frequency reproduction is required. It is also the ideal companion to use with the Ariatechnik SB-R soundbars and the AT 5.1 IW and AT 5.1 WS. The AT 12 IR-A includes 500 watts of amplification to provide sharp hitting dynamics combined with subtle musicality.

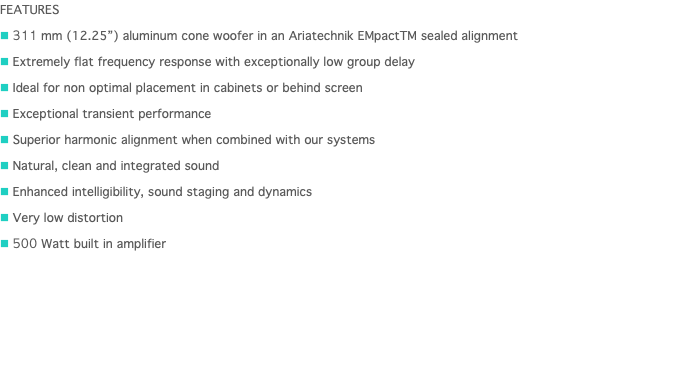

FEATURES n 311 mm (12.25”) aluminum cone woofer in an Ariatechnik EMpactTM sealed alignment n Extremely flat frequency response with exceptionally low group delay n Ideal for non optimal placement in cabinets or behind screen n Exceptional transient performance n Superior harmonic alignment when combined with our systems n Natural, clean and integrated sound n Enhanced intelligibility, sound staging and dynamics n Very low distortion n 500 Watt built in amplifier

Wave EM-Pact™

Ariatechnik’s Wave EM-Pact™ is a group of our core technologies and design techniques that increase bass definition and clarity. This is accomplished by using very high motor strength woofers in carefully sized cabinets and state of the art digital signal processing techniques that increase linearity, lower group delay (or time errors) and lower audible distortions.



The end result is a level of impact and clarity in music and film that is very different and better from that of traditional loudspeaker designs.

TECHNICAL SPECIFICATIONS

SYSTEM

Description

Transducer:

Presets switch:





Sensitivity:

Frequency Range:



Modular, 12 Inch Woofer
1 x 12.25" (311 mm) Wave EM-Pact™ transducer

3 position Standard,

180 Phase inversion,

Standard – 1.5 d.B. bass boost
Native sensitivity of woofer 86 d.B.

29 Hz - 120 Hz +/- 3 dB

CONSTRUCTION

Dimensions (HxWxD)





Weight

Shipping Weight









14.5 x 14.5 x 14.5 without grill

Or Gain knob on amp panel

368.3 mm x 368.3 mm x 368.3 mm

51 lbs (23 kg)

58 lbs (26 kg)



Specifications subject to change without notice, please verify

specifications in advance when dealing with critical applications.

Ariatechnik operates under a continuous research and development routine.

Full specification PDF
